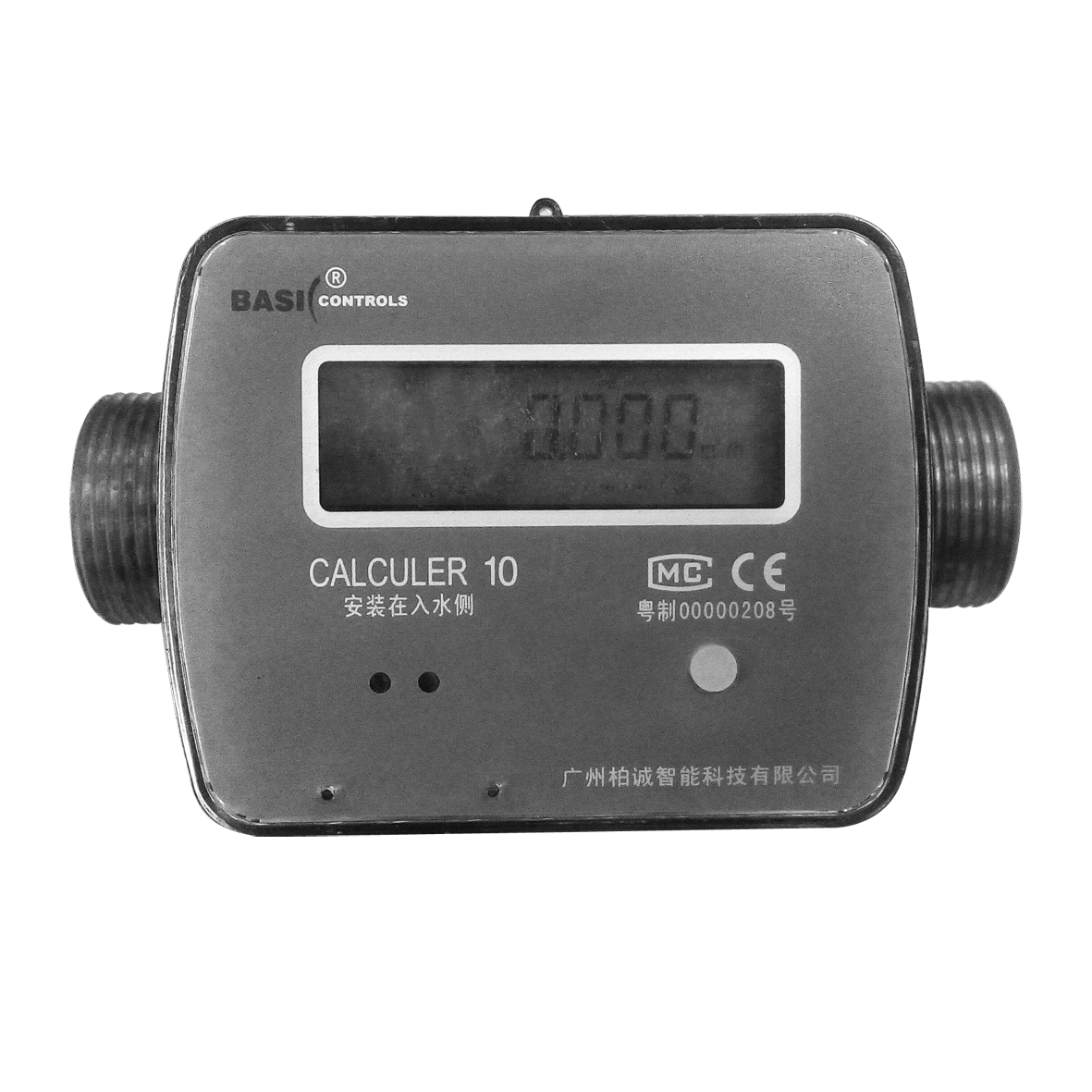

210 Series Ultrasonic BTU (M-bus)
The ultrasonic heat meter (UHM )is a highly accurate and stable heat meter. It utilizes ultrasonic technology to measure household heating and cooling energy consumption. This meter is a compact meter that has been designed to incorporate the flow sensor and calculator all in one unit for simplification of the unit’s installation. The 8-digit LED display makes reading the measured value simple and easy. The compact size and lack of moving parts makes the series UHM a low maintenance unit. These features make it great for installation on chillers, and boilers.
● Flow Direction: Unidirectional
● Enclosure Rating: IP65
● Process Connection: See chart
● Mounting Orientation: Horizontal or Vertical
● Agency Approvals: CE
FEATURES
● Works with both heating and cooling systems
● High accuracy
The high quality ultrasonic transducer and advanced electronic measurement technology work together to ensure the meter's high accuracy and stability.
● No moving parts
This decreases the maintenance cost and ensures that the meter is resistant to dirty water.
● PT1000 platinum resistance
● Low starting flow-rate
The U-shaped acoustic path widens the dynamic flow-rate measurement range and increases the accuracy of low and high end measurements where other, more narrow ranged, devices are inaccurate.
● Horizontal or vertical installation
● M-BUS output ports can be used for automated meter reading.
● Automatic diagnostic function
An error code will be displayed on the screen to indicate the problem.
● Ability to install an 3.6 V battery that can last up to 6 years.
TYPE SELECTION DN15-DN40
|
Dimensions |
Flow-rate |
Weight |
||||||
|
mm |
m3/h |
kg |
||||||
|
DN |
L |
D |
H |
W |
Qmax |
Qp |
Qmin |
|
|
15 |
110 |
G3/4B |
96 |
108 |
3 |
1.5 |
0.03 |
1.3 |
|
20 |
130 |
G1B |
101 |
108 |
5 |
2.5 |
0.05 |
1.4 |
|
25 |
160 |
G11/4B |
106 |
108 |
7 |
3.5 |
0.07 |
1.8 |
|
32 |
180 |
G11/2B |
113 |
108 |
12 |
6 |
0.12 |
2.3 |
|
40 |
200 |
G2B |
121 |
108 |
20 |
10 |
0..2 |
3.0 |
SPECIFICATIONS
● Service: Clean water
● Wetted Materials: DN15-40--Brass
DN50-200—Cast iron
● Range: See chart; Qmin :Qp = 1:50
● Accuracy: Flow Sensor: ±(2+0.02 Qp / Q)%
● Temperature: ±(0.3 + 0.05 * T)K; ΔT = T ± 0.1K Serial Communications: EN13757（2400bps ，8E1）Temperature Limits: Ambient: 41 to 131°F (5 to 55°C) Storage: 41 to 131°F (5to 55°C) Process: 36 to 203°F (2 to 95°C)
● Ambient Humidity: <93%
● Pressure Max: 232 psi (16 bar) / 362psi(25 bar) , default 16 bar
● Pressure Loss: <1.5 psi (10 kPa)
● Power Requirements: Battery: 3.6V
● Meter Power: Less than 1W or 1VA
