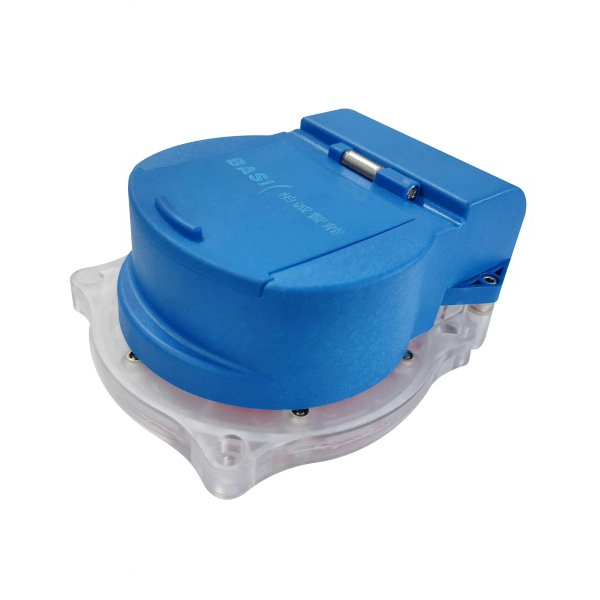

4G IoT Camera Remote Water Meter
The Water Meter IoT Camera Module (hereinafter referred to as the " Camera Module") is designed to communicate with servers via the UDP protocol for data transmission, enabling remote photo-based meter reading.
It is suitable for common mechanical water meters, allowing for remote meter reading without the need to replace the meter body. The module features automatic meter reading and automatic reading recognition.
With advantages such as high efficiency, excellent timeliness, and network capabilities, users only need to perform on-site installation once to remotely view water meter data daily, significantly saving labor costs and being both time-saving and effort-efficient.
Features
● High-Quality Imaging: Equipped with a high-resolution camera to ensure clear and accurate capture of meter readings.
● Automatic Recognition: Utilizes advanced image recognition technology to automatically identify and record meter readings.
● Remote Accessibility: Allows users to access and view meter data remotely via a network connection.
● Efficient Data Transmission: Uses UDP protocol for fast and reliable data communication with servers.
● Easy Installation: Can be installed on existing mechanical water meters without the need for replacing the meter body.
● Low Maintenance: Designed for long-term use with minimal maintenance requirements.
● Real-Time Monitoring: Provides real-time data updates, ensuring timely and accurate meter readings.
● Cost-Effective: Reduces the need for manual meter reading, saving labor costs and improving operational efficiency.
● Durability: Built to withstand various environmental conditions, ensuring reliable performance over time.
● User-Friendly Interface: Comes with an intuitive interface for easy setup and management of the module.
Technical Specification
|
Photo Upload Duration |
0.5~3mins |
|
Average Power Consumption per Photo Upload |
≤3.5mAh |
|
Sleep mode Current |
≤12uA |
|
Battery Voltage |
3.6V |
|
Battery Capacity |
8.5Ah |
|
Lifespan |
6years |
|
Operating Temperature |
0~50℃ |
|
Communication |
4G |
Telecom Operator |
China Telecom |
|
Wireless Frequency Band |
B1/B3/B5/B8/B34/38/B39/B40/B41 |
Protocol Stack |
UDP |
Overall Dimensions
|
Diameter |
L(mm) |
W(mm) |
H(mm) |
|
DN15 |
165 |
90 |
130 |
|
DN20 |
195 |
90 |
135 |
|
DN65-DN200 Dimension |
||||||
|
Diameter DN(mm) |
Flow range(m3/h) |
Length |
Height |
Outer Diameter |
B.C.D. |
Single-side helix number and thread n-M |
|
65 |
7～30 |
390 |
305 |
185 |
145 |
4-M18 |
|
80 |
10～40 |
415 |
320 |
200 |
160 |
8-M18 |
|
100 |
20～75 |
480 |
360 |
220 |
180 |
8-M18 |
|
125 |
30～115 |
504 |
390 |
250 |
210 |
8-M18 |
|
150 |
45～165 |
567 |
425 |
285 |
240 |
8-M22 |
|
200 |
75～300 |
812 |
865 |
340 |
295 |
12-M22 |
