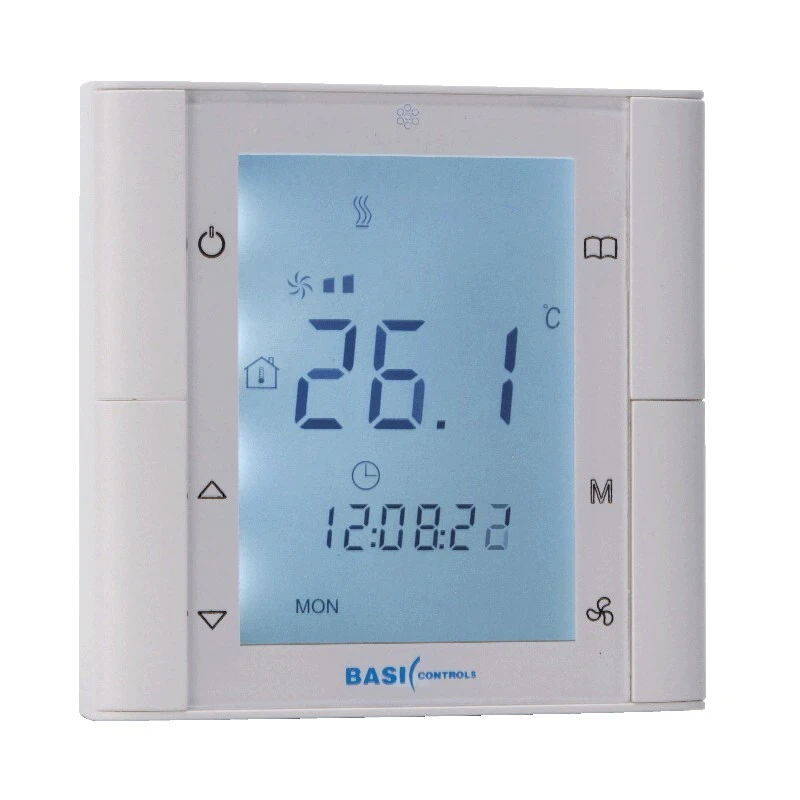

HB403A-SRT80Y Electric Thermostat for FCU with AC Motor
The SRT80Y adopts a simple and stylish design with smooth lines, and the panel is made of high-quality materials with a superior texture, which can be better integrated into the interior environment of various decoration styles. The display is large and clear, and the parameters can be seen at a glance. The operating buttons are well laid out and feel comfortable, making it easy for users to operate.
● With intelligent temperature control function.
● Automatically store data and will not lose data due to power failure.
Features
● Intelligent temperature control function: it can adjust the temperature by itself according to the environment change.
● Data storage security: with the ability to automatically store data, high data security.
● Convenient on-site operation: Supporting on-site operation, users can conveniently set the temperature, temperature correction value and timer on/off time.
● Wide adaptability: applicable to two-pipe or four-pipe fan coiler devices. It can be adapted to both two-wire and three-wire electric valves (solenoid valves), while the four-pipe fan coil unit is only adapted to two-wire electric valves.
● Flexible mode switching: cooling/heating mode can be switched manually.
● Self-adjustment of wind speed: it can be manually adjusted or automatically switched, so that the user can flexibly control the indoor airflow.
● Remote infrared control: Users can control the equipment from a distance and easily regulate various functions.
● Real-time status display: the product has a real-time status display function. The appearance of a specific logo in the main interface indicates that the air conditioner is on; without this logo, the air conditioner is off. If the main interface flashes, the communication is normal; if it does not flash, the communication is interrupted.
Technical Parameter
|
No. |
Name |
Key Parameter |
|
1 |
Rated voltage |
AC110V -AC240V |
|
2 |
Frequency |
50Hz |
|
3 |
Power consumption |
1.5W |
|
4 |
Fan rated load |
4 A（2 A） |
|
5 |
Valve rated load |
2 A（1 A） |
|
6 |
Communication interface |
RS485 |
|
7 |
Baud rate |
9600bps |
|
8 |
Communication wire |
Twisted pair shielded wire, RVSP2*0.5 can be used |
|
9 |
Temperature control range |
16 ～30 ℃ |
|
10 |
Temperature precision rate |
±1 ℃ |
|
11 |
IP class |
IP30 |
|
12 |
Working environment |
0℃~50℃, less than 95%R.H. |
|
13 |
Storage environment |
-10℃~50℃, less than 95%R.H. |
MODEL DESCRIPTION
|
Model No. |
Communication interface |
Power Supply |
Fan Type |
Control Mode |
Remote Control |
Color of background |
||
|
SRT-80Y SRT-91Y |
RB |
RM |
0 |
3 |
A |
B |
R |
W |
|
RS485 interface/ Factory Protocol |
RS485 interface/ MODBUS |
AC220V |
3-speed fan |
2-pipe |
4-pipe |
Infrared remote control |
White |
|
Installation Instructions
● Be sure to cut off the power and wait at least 5 minutes before proceeding with the installation operation, otherwise it may cause electric shock or damage the system components.
● The installation location should be on the wall of the indoor air-conditioning room, about 1.5m away from the ground, where the air is circulating, so as to ensure that the thermostat can accurately measure and control the room temperature.
● The thermostat must be installed in a place without sunlight, in a dry place or away from cooking equipment and other heat sources.
● Working environment temperature: 0°C ~ 50°C, relative humidity: <85% (24°C).
● Since the back seat of the thermostat needs to occupy part of the space of the junction box, it is recommended to use a multi-strand sheathed flexible wire with a specification of RVV 6 x 0.75 for wiring.
● During engineering installation, it is strictly forbidden to connect more than two fan coil units in parallel.
